Vacuum lifting


Magdeburger Halbkugeln

Physical principles:

Mean air pressure at sea level is 1000 millibars (mb) which is the equivalent of 1 kg per cm². If the air is now extracted under a suction housing, the ambient air pressure presses the suction housing to the surface.


In vacuum lifting technology, the vacuum is generated by an electric pump which initially evacuates (sucks the air out of) a tank kept directly at the machine. The vacuum is generated to 98 %.


The pump runs continuously all the time the machine is working. It is even capable of withstanding higher temperatures during continuous operation (oil circulation cooling).


For lifting purposes, the suction housings are connected with the tank by means of an electric valve and vacuum pipes. The valve is opened by pressing a button to force the air out of the suction housing into the tank. This happens suddenly so that the suction housing is also suddenly pressed to the part being lifted. The vacuum area is now expanded by the space underneath the suction housing. Between the suction housing and the part that is to lift acts the rubber seal. The seals have an extremely long service life. New seals often hold the vacuum for days at a time, even when the pump is switched off. Over time, wear-and-tear together with mechanical loads can result in minor vacuum losses. This is also one reason why the pump must be kept running while the machine is in use!


Lifting and turning of concrete pipes in the production area DIA 1600 mm, 12 to

Vakuum Wendetrverse
DSCN0868
Lifting and turning of concrete pipes in the production area DIA 2800 mm, 42 to

Vacuum handling of concrete jacking pipes up to 42 to on the site.

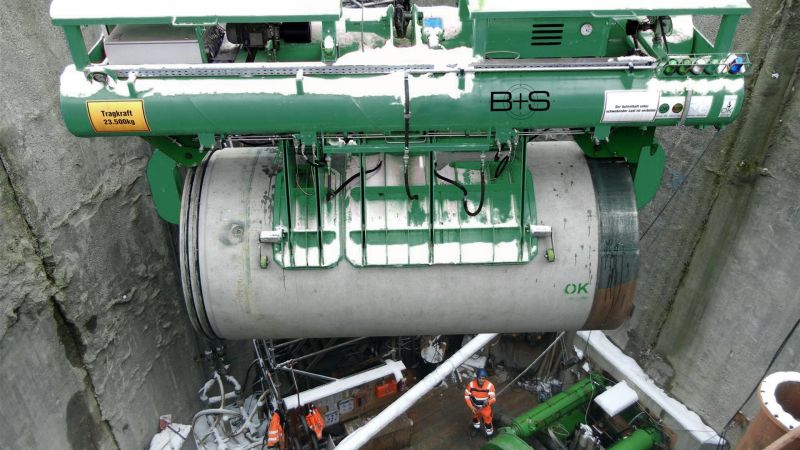

Here: let down of a concrete jacking pipe into the manhole

DSCN1329 (Custom)
Gersamtansicht 2
Horizontal manipulation of steel pipes on the site up to 20 to

Vakuum traverse for lifting and turning of concrete tanks up to 20 to

K800 P1030879

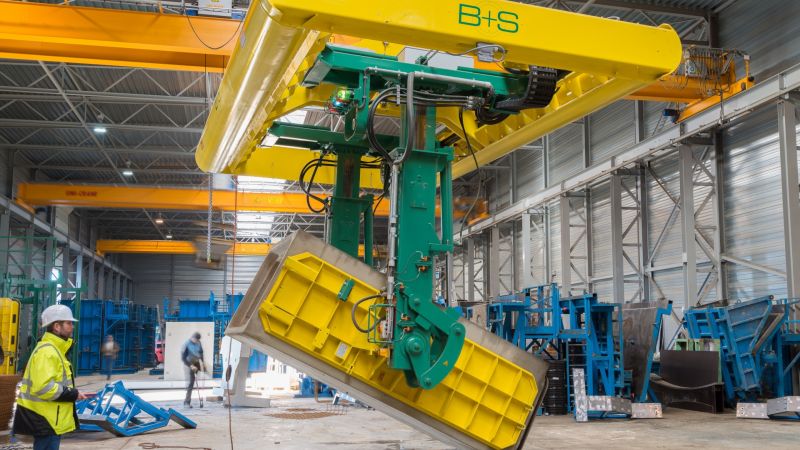

ÜBERSICHT Vakuum Peer Schmidt 21
Vakuum traverse for lifting and turning of concrete box culverts up to 30 to

Vakuum traverse for lifting and turning of concrete tunnel segments up to 10 to

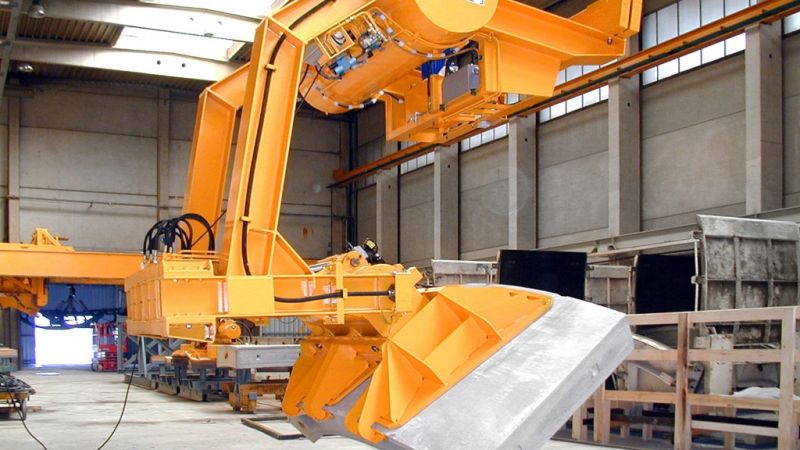

P1010005
P1010023 grün

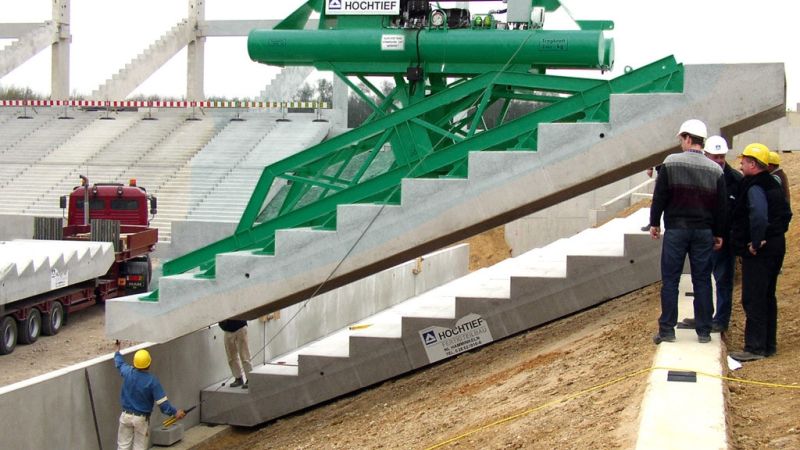

Vakuum traverse for lifting and turning of concrete precast stair elements up to 20 to

Vakuum traverse for lifting of concrete tunnel segments up to 8 to

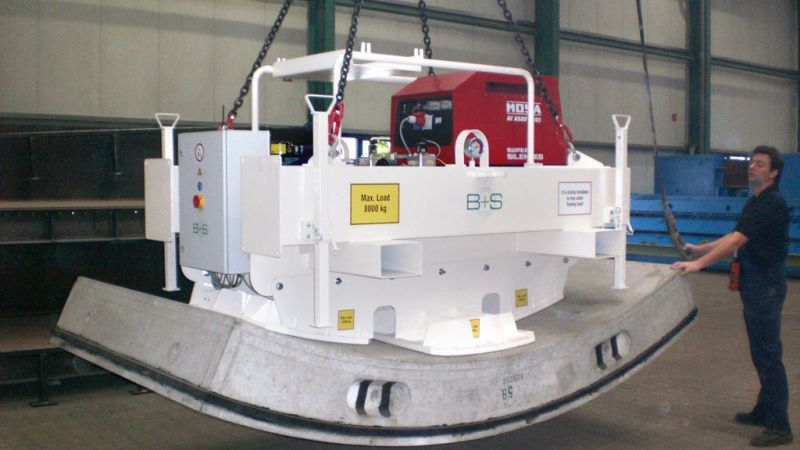

Vakuum
