Sub-Supply
We have special machines available for machining large-dimension parts for the production of our products.
We can offer:

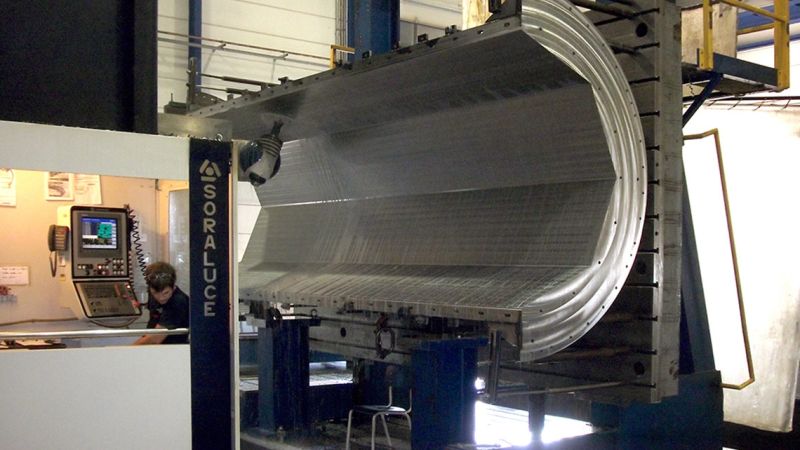

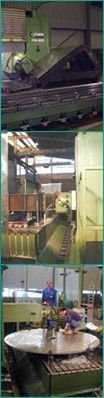

Milling work on CNC moving column milling machines
Table clamping area: 4500 mm x 1200 mm
Travel: X – axis 4000 mm
Y – axis 1500 mm
Z – axis 1000 mm
Dimensional accuracy: (in conformance with ISO 2768 f)
Table clamping area: 4500 mm x 1200 mm
Travel: X – axis 4000 mm
Y – axis 1500 mm
Z – axis 1000 mm
Dimensional accuracy: (in conformance with ISO 2768 f)
In addition as of September 2007:
Table clamping area: 6000 mm x 2000 mm
Travel: X – axis 5000 mm
Y – axis 1500 mm
Z – axis 2000 mm
Dimensional accuracy: (in conformance with ISO 2768 f)
Travel: X – axis 5000 mm
Y – axis 1500 mm
Z – axis 2000 mm
Dimensional accuracy: (in conformance with ISO 2768 f)
Lathe work with face lathes
Clamping to face plate Dia. Ø 3500 mm
With plate /arm: Dia. Ø 6000 mm
Depth: 800 mm
Turning between tips: Dia. Ø 2200 mm
Max. turning length between tips: 3150 mm
Taper: Metric 100 DIN 809
Dimensional accuracy: (in conformance with ISO 2768 m)
With plate /arm: Dia. Ø 6000 mm
Depth: 800 mm
Turning between tips: Dia. Ø 2200 mm
Max. turning length between tips: 3150 mm
Taper: Metric 100 DIN 809
Dimensional accuracy: (in conformance with ISO 2768 m)
Production of welded assemblies with subsequent machining.
Certified welding company in conformance with DIN 18800-7:2002-09; Class C.
All orders will be completed in conformance with DIN EN ISO 9001 : 2000.Thank you for your interest in our products; we assure you that your enquiry will be processed immediately.

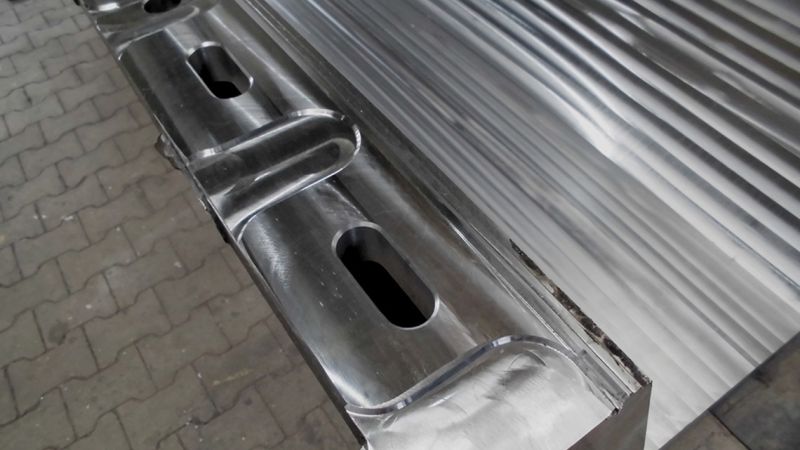

Milling work
